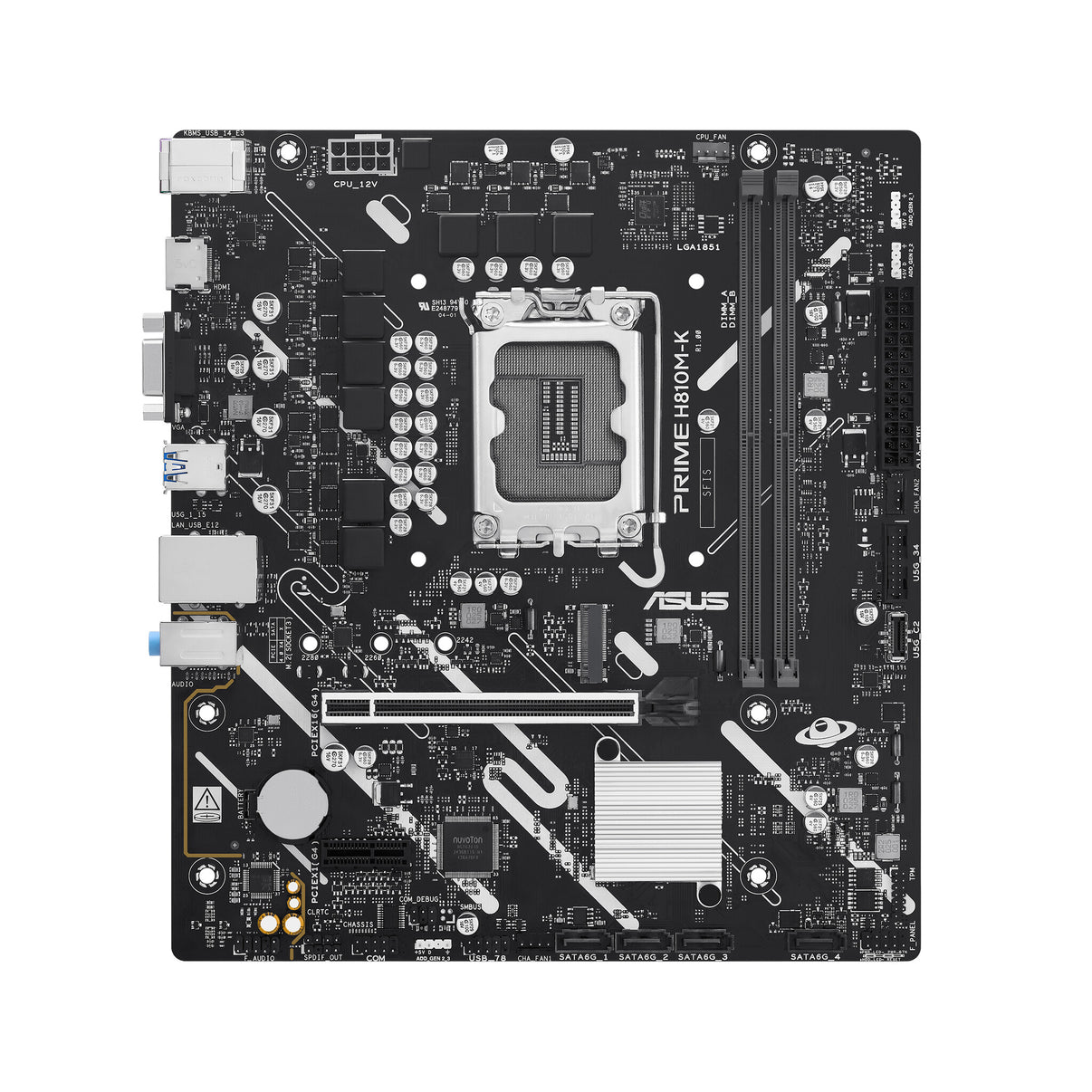

ASUS PRIME H810M-K Intel H810 LGA 1851 (Socket V1) micro ATX

• Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
• PC micro ATX Intel H810 7.1 channels
• DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
• HDD & SSD M.2, SATA III Number of storage drives supported: 5
• BIOS type: UEFI AMI 256 Mbit
• Gigabit Ethernet

---

PRIME H810M-K Intel H810 LGA1851 micro-ATX (Advanced AI PC-ready, DDR5, PCIe 4.0, HDMI, VGA, USB 5Gbps, USB 5Gbps Type-C, M.2, Realtek 1Gb Ethernet, Aura Sync)

---

PRIME H810M-K
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance
Digital Power Design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME H810M-K features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.

---

Processor
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851

Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Maximum internal memory	128 GB
Unbuffered memory	Yes

Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	5
Number of HDDs supported	4

Graphics
Parallel processing technology support	Not supported

Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
12V power connector	Yes
TPM connector	Yes
Number of COM connectors	1
RGB LED pin header	Yes
Number of RGB LED pin headers	3

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1

Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wi-Fi	No
Top Wi-Fi standard	Not available

Features
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel H810
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64, Windows 11

Expansion slots
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0

BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Packaging data
Package width	270 mm
Package depth	263 mm
Package height	51.5 mm
Package weight	828 g

Weight & dimensions
Width	234 mm
Depth	211 mm

Packaging content
Cables included	SATA
