ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Socket AM5 ATX

• AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
• PC ATX AMD X870E 7.1 channels
• DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
• HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
• BIOS type: UEFI AMI 256 Mbit Clear CMOS button
• 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

---

AMD X870E, AM5, 4 x DIMM slots, max.256GB DDR5, 2.5/5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4, 256Mb Flash ROM, UEFI AMI BIOS, ATX

---

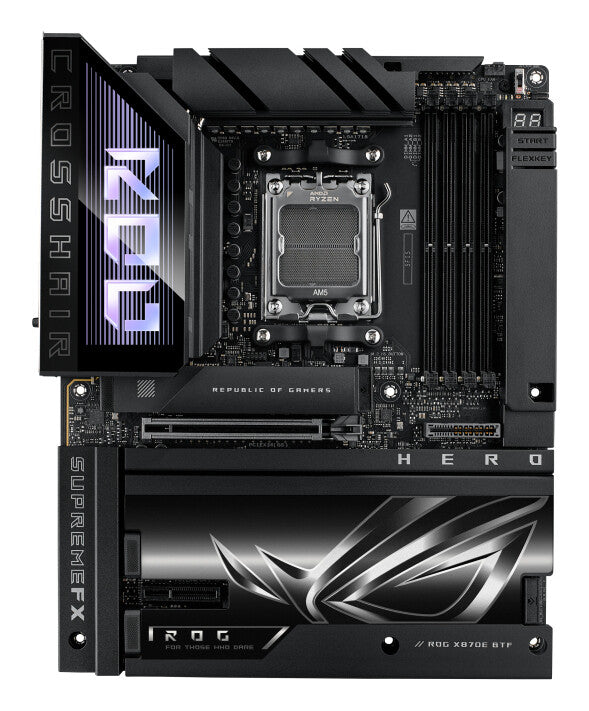

ROG Crosshair X870E HERO BTF
The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.

---

Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speed (max)	8600 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes

Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	9
Number of HDDs supported	4
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics
Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	4
EPS power connector (8-pin)	Yes
12V power connector	Yes

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports	2
HDMI ports quantity	1
Microphone in	Yes
S/PDIF out port	Yes

Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Audio output channels	7.1 channels
Product colour	Multicolour
Windows operating systems supported	Windows 11

Expansion slots
PCI Express x4 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	5

BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes

Packaging data
Package width	366 mm
Package depth	308 mm
Package height	110 mm
Package weight	4.47 kg

Weight & dimensions
Width	305 mm
Depth	244 mm
Height	57 mm

Other features
Weight	2.62 kg
