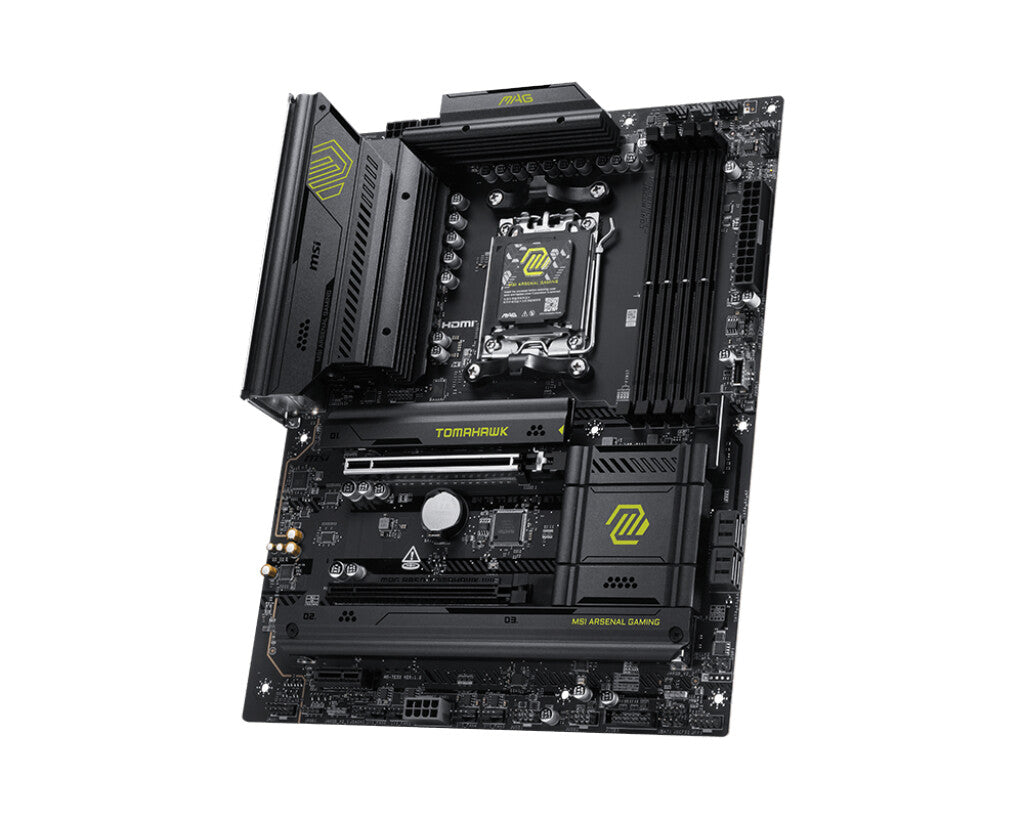

MSI MAG B850 TOMAHAWK WIFI motherboard AMD B850 Socket AM5 ATX

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
• 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

---

4x DDR5 8200 (OC) MT/s, 256GB, 3x M.2, 4x SATA 6G, 5G LAN, ATX

---

MSI MAG B850 TOMAHAWK WIFI
MAG B850 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

MSI Motherboard ai logo
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

Carefully developed by MSI, allows SSD installation and removal without the need for screws, greatly enhancing convenience.

Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG B850 TOMAHAWK WIFI is ready for the challenge of high-end processors.

OC Engine is a dedicated chip that enables independent Base Clock (BCLK) control for precise tuning through asynchronous mode in MSI BIOS. It boosts performance by up to 15% while keeping iGPU, memory, PCIe and NVMe stable, giving enthusiasts more headroom for record-breaking overclocks.

MSI utilizes PCB Fabric Technology to enhance signal performance, resulting in higher bandwidth and faster data transfer while minimizing signal loss. The PCB Fabric Technology also offers better impedance control and improved thermal stability, allowing the boards to endure demanding conditions. Due to the high-quality materials used, MSI motherboards are highly reliable and well-suited for the requirements of modern technology.

MSI's premium network solution provides incredible data transfer speed for demanding users.

---

Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5

Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	4800,5600,8200 MHz
Supported memory clock speed (max)	8200 MHz
Maximum internal memory	256 GB

Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, Micro SATA III
Number of storage drives supported	7
Number of HDDs supported	4
RAID support	Yes
RAID levels	0, 1, 10

Graphics
On-board graphics card	No

Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
CPU fan connector	Yes
Number of CPU fan connectors	6
Number of water pump connectors	1
RGB LED pin header	Yes
Number of RGB LED pin headers	3

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1

Network
Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Audio chip	Realtek ALC4080
Audio output channels	7.1 channels
Product colour	Black
Windows operating systems supported	Windows 11 x64

Expansion slots
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0

BIOS
BIOS type	UEFI
BIOS memory size	512 Mbit
ACPI version	6.5
System Management BIOS (SMBIOS) version	3.7

Weight & dimensions
Width	243.8 mm
Depth	304.8 mm

---
