MSI

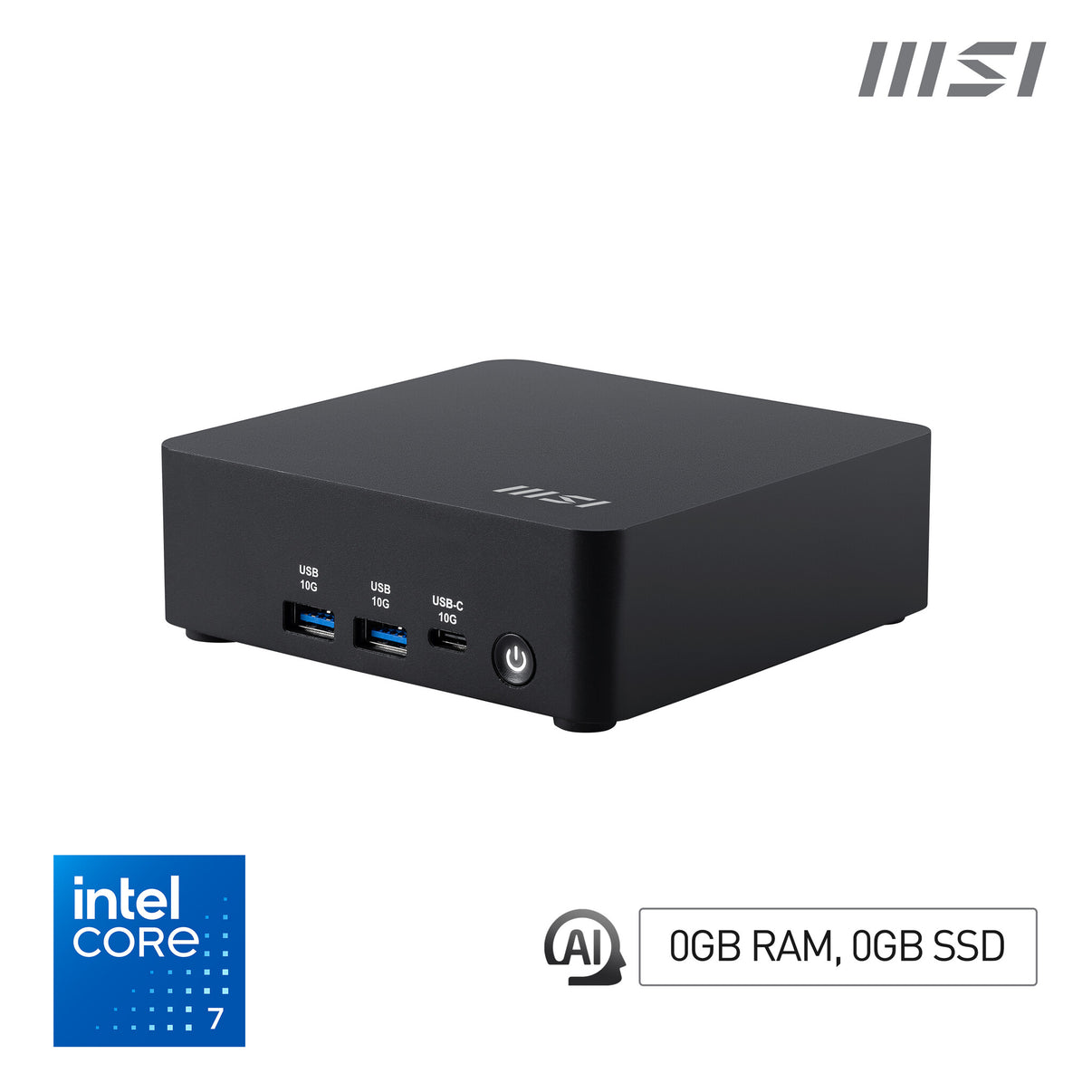

MSI Cubi NUC AI 1UMG Intel Core Ultra 7 155H, Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA

Regular price £499.95 GBP
Tax included.
SKU: CUBI NUC AI 1UMG I7 155H BB

Stock Adequate!Ready to ship

Pairs well with

MSI Cubi NUC AI 1UMG Intel Core Ultra 7 155H, Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
£499.95 GBP
£499.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Up to Intel® CoreTM Ultra 7 processor 155H with Intel® AI Boost NPU
  • Supports DDR5 5200MHz memory
  • Supports 1x M.2 2280 SSD (PCIE, factory pre-installed), 1x M.2 2242 SSD (PCIE)
  • Quadruple monitor support (Thunderbolt 4, HDMI 2.1)
  • 1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front
  • MSI Power Link support
  • MSI Power Meter software
  • Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3

MSI Cubi NUC AI 1UMG Intel Core Ultra 7 155H, Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA

The Cubi NUC AI 1UM is a mini pc equipped with Intel® AI Boost NPU and Intel® CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.

Up to Intel® CoreTM Ultra 7 processor 155H with Intel® AI Boost NPU -Equipped with a built-in Intel® AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience
RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB).

The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content
Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included
The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series
The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment
The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free
The two rear Thunderbolt 4 ports support the display and power delivery output of 15W
Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload
Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation


Processor
ECC supported by processor No
Thermal Design Power (TDP) 28 W
L3 cache 12 MB
L2 cache 12 MB
Processor cache 24 MB
Processor lithography 7 nm
Low Power Efficient-core Base Frequency 800 MHz
Efficient-core base frequency 1 GHz
Performance-core base frequency 1.4 GHz
Efficient-core Max Turbo Frequency 3.8 GHz
Performance-core Max Turbo Frequency 4.8 GHz
Low Power Efficient-cores 2
Efficient cores 8
Performance cores 6
Processor frequency 1.4 GHz
Processor boost frequency 4.8 GHz
Processor threads 22
Processor cores 16
Processor model 155H
Processor family Intel Core Ultra 7
Processor manufacturer Intel
Built-in processor Yes
Memory
Non-ECC No
ECC No
Memory bandwidth (max) 64 GB/s
Supported memory clock speeds 5200 MHz
Supported memory types DDR5-SDRAM
Maximum internal memory 64 GB
Memory channels Dual-channel
Number of memory slots 2
Memory slots type SO-DIMM
Storage
Card reader integrated No
Number of storage drives supported 2
NVMe Yes
Storage drive interface PCI Express
Storage drive sizes supported M.2
Supported storage drive types SSD
Audio
Built-in speaker(s) No
Network
Bluetooth Low Energy (BLE) Yes
LAN controller Intel I226-V
Bluetooth Yes
Bluetooth version 5.2
Near Field Communication (NFC) No
WLAN controller model Intel Wi-Fi 6E AX211
Wi-Fi standards Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet LAN Yes
Ports & interfaces
DC-in jack No
Thunderbolt ports quantity 2
Ethernet LAN (RJ-45) ports 1
Thunderbolt 4 ports quantity 2
HDMI version 2.1
HDMI ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Expansion slots
Number of M.2 (M) slots 2
Design
Product type Mini PC barebone
Panel mounting interface 100 x 100 mm
VESA mounting Yes
On/off switch Yes
Cooling type Passive
Product colour Black
Chassis type Cube
Performance
Export Control Classification Number (ECCN) 5A992.C
Commodity Classification Automated Tracking System (CCATS) 740.17B1
Trusted Platform Module (TPM) version 2.0
Supported processor frequency (max) 4.8 GHz
Number of processors supported 1
Processor socket BGA 2049
Motherboard form factor NUC
Processor special features
Intel® Rapid Start Technology No
Intel Advanced Management Technology No
Intel Clear Video Technology Yes
Intel® Unite™ No
Intel Unite installed No
Intel® Optane™ Memory Ready No
Intel® Platform Trust Technology (Intel® PTT) Yes
Embedded options available No
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Flex Memory Access Yes
Intel® Virtualization Technology (Intel® VT) Yes
Intel Trusted Execution Technology No
Execute Disable Bit Yes
Intel Virtualization Technology (VT-x) Yes
Intel On-Demand Power Redundancy Technology No
Intel® High Definition Audio (Intel® HD Audio) Yes
Intel Dual Display Capable Technology Yes
Intel Rapid Storage Technology Yes
Intel® Anti-Theft Technology (Intel® AT) No
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel® Quick Sync Video Technology Yes
Intel® InTru™ 3D Technology No
Intel® Insider™ No
Intel® Wireless Display (Intel® WiDi) No
Intel FDI Technology No
Intel® Clear Video HD Technology (Intel® CVT HD) Yes
Intel® Turbo Boost Technology Yes
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Intel 64 Yes
Intel® My WiFi Technology (Intel® MWT) No
Idle States Yes
Enhanced Intel SpeedStep Technology Yes
Intel Demand Based Switching Yes
Thermal Monitoring Technologies Yes
Intel Fast Memory Access No
Intel® Identity Protection Technology (Intel® IPT) Yes
Intel® Smart Cache Yes
Intel Visual BIOS No
Intel Express BIOS update No
Intel TSX-NI No
Intel® Matrix Storage Technology (Intel® MST) No
Intel Smart Connect Technology No
Intel® Small Business Advantage (Intel® SBA) No
Intel® Secure Key Yes
Intel® Smart Response Technology No
Intel Stable Image Platform Program (SIPP) No
Intel® OS Guard Yes
Conflict-Free Yes
Intel® vPro™ Platform Eligibility No
General
Product family Cubi
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Software
Operating system installed No
Linux operating systems supported Yes
Windows operating systems supported Yes
Technical details
Not classified as hazardous under GHS No
PSTI certified No
Power
Number of power supply units 1
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power supply 120 W
Power supply type External AC adapter
Operational conditions
Operating temperature (T-T) 0 - 35 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 85%
Storage relative humidity (H-H) 0 - 90%
Weight & dimensions
Package height 94 mm
Package depth 220 mm
Package width 205 mm
Height 37.5 mm
Depth 115.2 mm
Width 119.6 mm
Packaging content
Keyboard included No
Mouse included No
Display included No
Drivers included No
Quick start guide No
AC adapter included No
Power cord included Yes
Other features
Warranty period 3 year(s)
Country of origin China
Introduction month June
Introduction year 2025
