Stock Adequate！Ready to ship
- Supports Nvidia® GeForce RTX™ 50 series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Gold certified
- Optimized the sound level
- Main 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

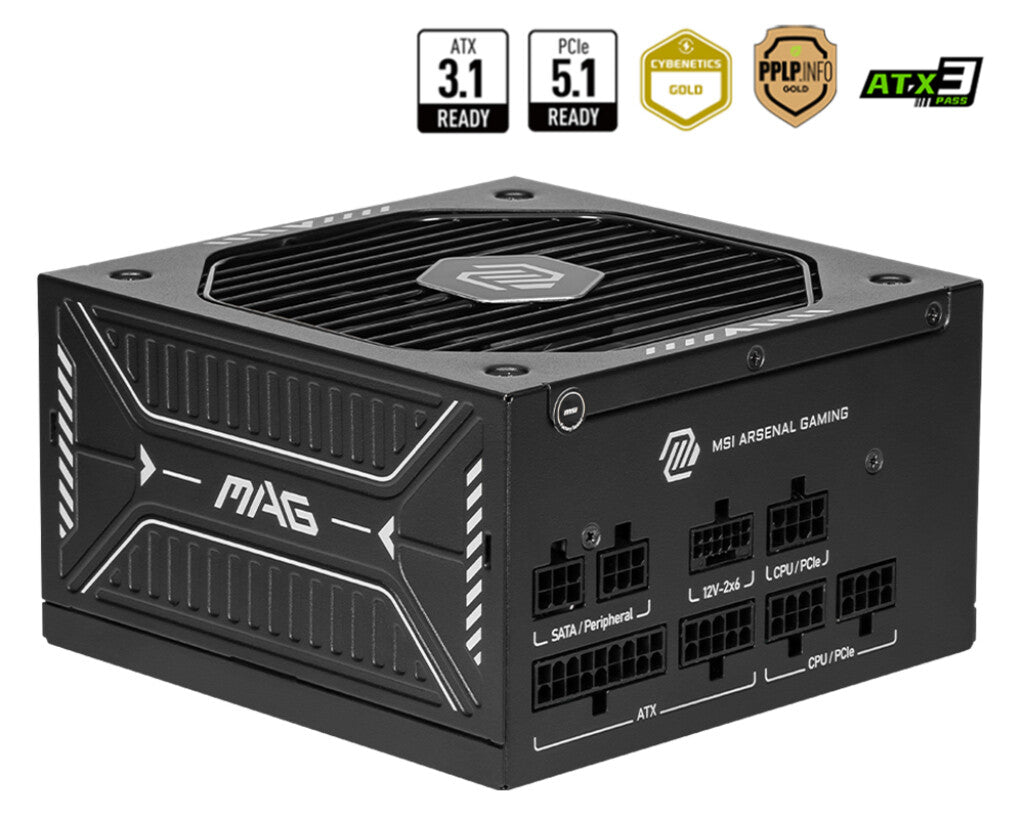

80 PLUS Gold, 90%, Full Modular, 135 mm, 24-pin ATX, Fluid Dynamic Bearing, Active PFC, 650 W, 100-240 V, 50-60 Hz, OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO, 1 x ATX 24 pin, 2 x EPS 4+4 pin, 1 x PCI-E, 2 x PCI-E 6+2 pin, 5 x SATA, 2 x Peripheral 4 pin, Black, 150 x 150 x 86 mm
Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
| Power |
|---|
| Power protection features |
No load operation, Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Efficiency |
90% |
| Max output current (+3.3V) |
18 A |
| Combined power (+5Vsb) |
12.5 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
100 W |
| Combined power (+12V) |
648 W |
| Combined power (+3.3V) |
100 W |
| Power Factor Correction (PFC) type |
Active |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Peak power |
1430 W |
| Total power |
650 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| Number of EPS connectors |
2 |
| PCI Express connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| PCI Express power connectors (16-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
2 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
No |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| Number of SATA power connectors |
5 |
| Motherboard power connector |
24-pin ATX |
| Performance |
|---|
| Bearing technology |
FDB |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| Illumination |
No |
| Number of fans |
1 fan(s) |
| Fan diameter |
13.5 cm |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Height |
86 mm |
| Depth |
150 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package type |
Box |
