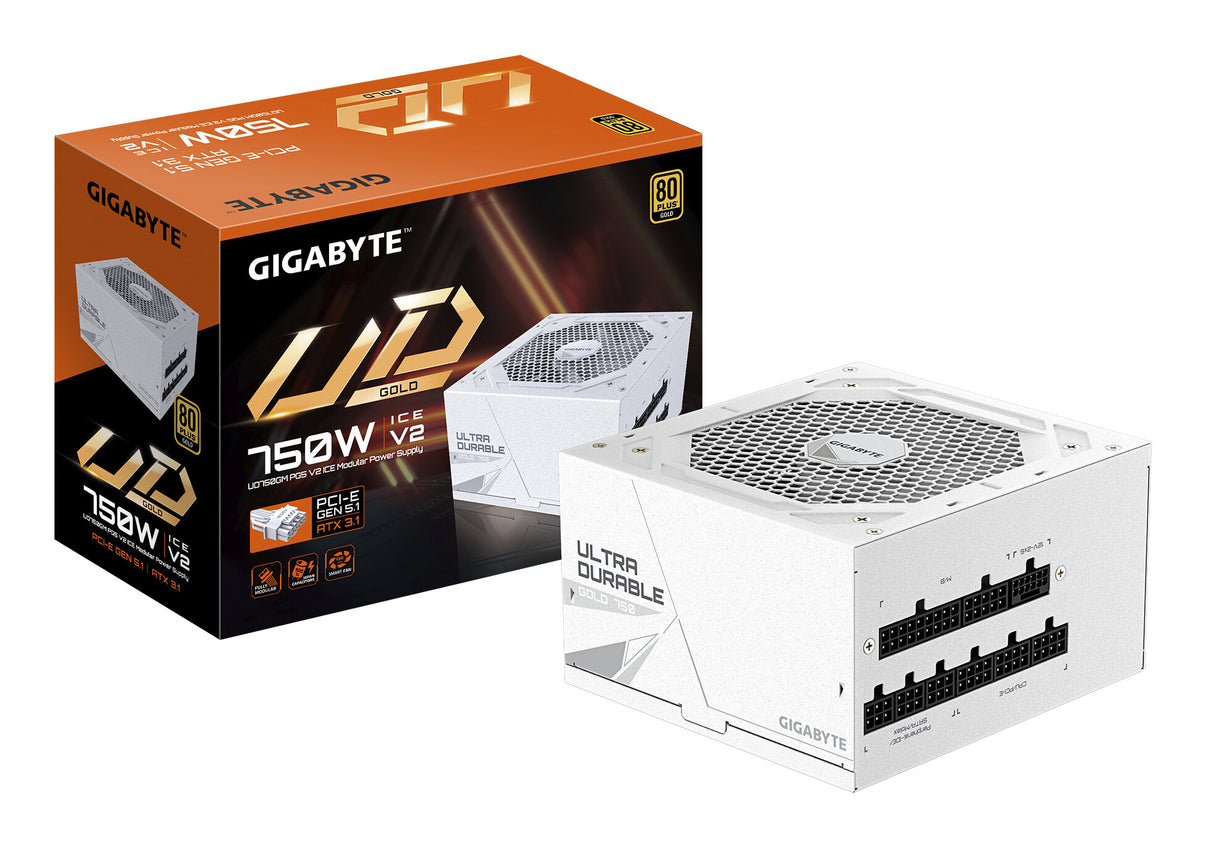

GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug

£93.95 GBP
Sold out
Tax included.
SKU: GP-UD750GM PG5 ICE

Out of stock

Pairs well with

GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
£93.95 GBP
£93.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Intel ATX 3.1 and PCIe Gen 5.1 ready
  • 80 PLUS Gold certified
  • Fully modular design
  • Powerful single +12V rail
  • Compact size
  • 100% Japanese capacitors
  • 120mm smart hydraulic bearing (HYB) fan
  • Optimized thermal solution
  • OVP/OPP/SCP/UVP/OCP/OTP protection
UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Power
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency 90%
Hold time 16 ms
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.3 A
Max output current (+5V) 20 A
Max output current (+12V) 62.5 A
Max output current (+3.3V) 20 A
Combined power (+5Vsb) 15 W
Combined power (-12V) 3.6 W
Combined power (+5V) 105 W
Combined power (+12V) 750 W
Combined power (+3.3V) 105 W
Power Factor Correction (PFC) type Active
Power factor 0.9
Input current 12 - 6.5 A
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Total power 750 W
Ports & interfaces
Cabling type Fully-Modular
Number of EPS connectors 2
PCI Express connector Yes
Floppy drive power connector 1
CPU power cable length 65 cm
CPU power connector (4+4 pin) Yes
PCI Express power cable length 60 cm
PCI Express power connectors (12+4 pin) cable length 700 mm
PCI Express power connectors (12+4 pin) 1
PCI Express power connectors (6+2 pin) 4
Peripheral (Molex) power connectors (4-pin) 3
Number of SATA power connectors 8
Motherboard power cable length 61 cm
Motherboard power connector 20+4 pin ATX
Performance
Mean time between failures (MTBF) 100000 h
Bearing technology HYB
ATX version 3.1
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
Purpose PC
Design
On/off switch Yes
Number of fans 1 fan(s)
Fan diameter 12 cm
Cooling type Active
Product colour White
Weight & dimensions
Weight 2.34 kg
Height 86 mm
Depth 140 mm
Width 150 mm
Packaging data
Package type Box
Package weight 2.5 kg
Package height 211 mm
Package depth 269 mm
Package width 618 mm
Logistics data
Warranty period 5 year(s)
