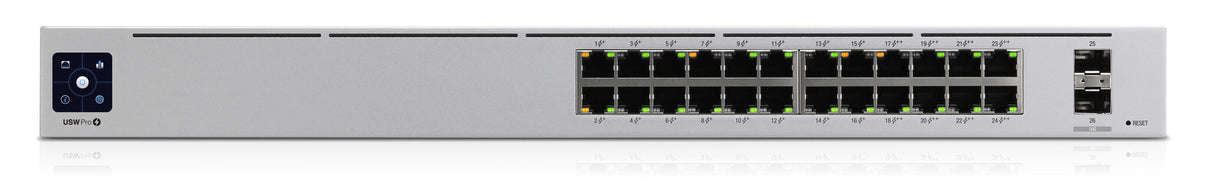

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

• Managed L2/L3 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 24
• 10G support
• MAC address table: 16000 entries Switching capacity: 88 Gbit/s
• 1U Rack mounting
• AC Power supply included Power over Ethernet (PoE)

---

USW-Pro-24-POE Gen 2, AC/DC, Internal, 450W, (24) 10/100/1000 RJ45 Ports, (2) 1/10G SFP+, 442.4 x 285.4 x 43.7 mm

---

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

---

Management features
System event log	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2/L3
Switch type	Managed

Ports & interfaces
Power connector	AC-in jack
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24

Network
Number of VLANs	1000
VLAN support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
IPv4 routes	64
Flow control support	Yes
Full duplex	Yes
Port mirroring	Yes
10G support	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at

Data transmission
Packet buffer memory	2 MB
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	65.472 Mpps
Throughput	44000 Mpps
Switching capacity	88 Gbit/s
MAC address table	16000 entries

Security
Authentication type	IEEE 802.1x, RADIUS
IGMP snooping	Yes
DHCP features	DHCP relay, DHCP server, DHCP snooping

Design
Display type	LCM
LED indicators	Activity, Link, PoE, Speed, System
Reset button	Yes
Product colour	Silver
Form factor	1U
Rack mounting	Yes

Power
Power consumption (max)	450 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Number of power supply units	1
Redundant power supply (RPS) support	Yes
Power supply included	Yes
Power source	AC

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	400 W
Power over Ethernet (PoE) power per port	64 W
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE)	Yes

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 40 °C

Weight & dimensions
Weight	4.3 kg
Height	43.7 mm
Depth	285.4 mm
Width	442.4 mm

General
Product family	UniFi

Certificates
Certification	CE, FCC, IC

Logistics data
Harmonized System (HS) code	85176990

---
