Description
- Delivers up to 30W of PoE+
- Supports wall mount, DIN rail and floating mount
- Lockable latch designed for power cord security

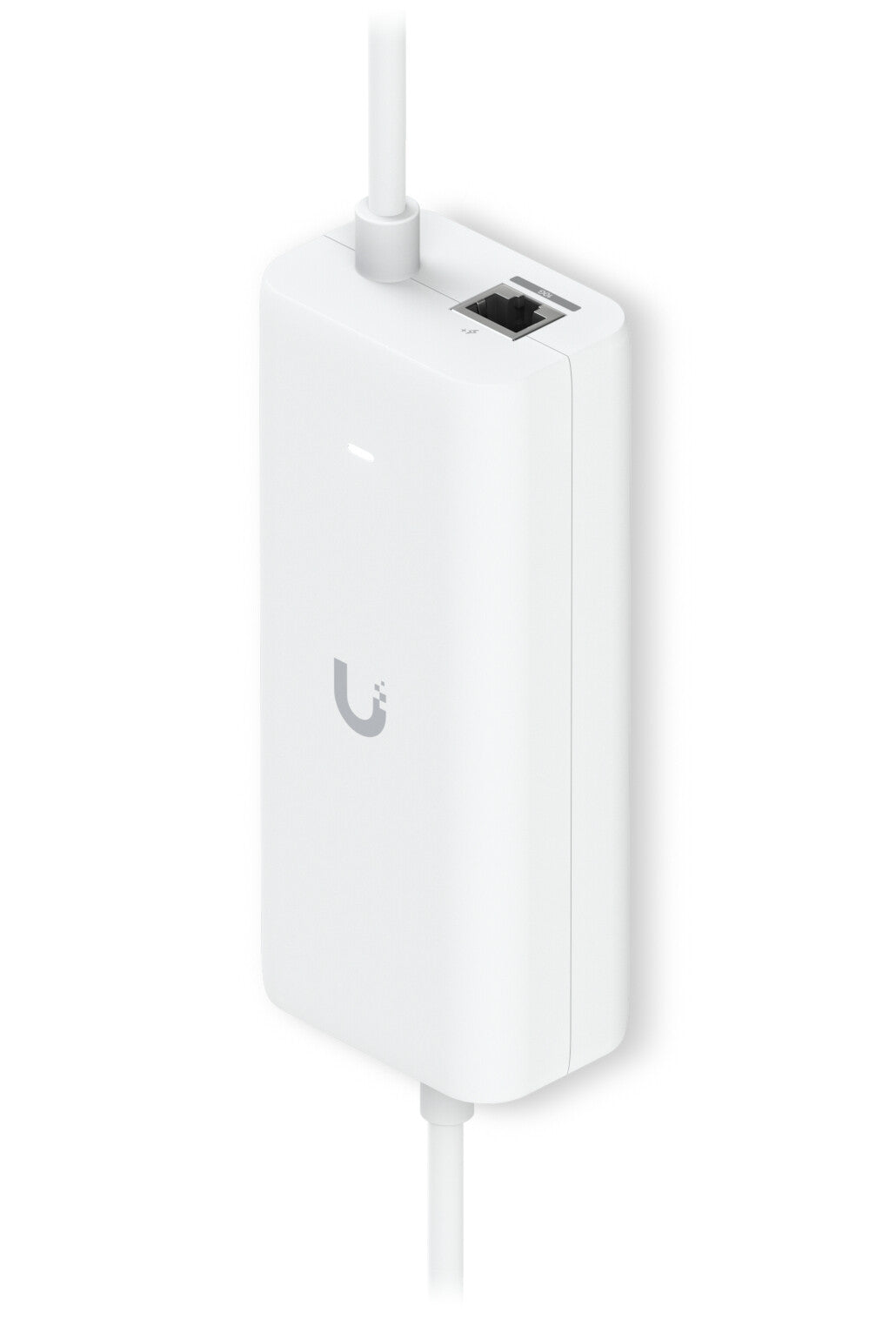

PoE Integrated AC Adapter, Type-C: 5V@ 5A, PoE+: 48V@ 0.65A, 65 kHz, 146 x 62 x 42 mm
An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.
| Network | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
|---|---|
| Power protection features | Peak pulse, Surge protection |
| LED indicators | Yes |
| Surge protection | Yes |
| Wall mountable | Yes |
| Product colour | White |
| Ports & interfaces | |
|---|---|
| USB Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Response time | 1 ns |
| Load regulation | 5% |
| Line regulation | 5% |
| Total Power over Ethernet (PoE) budget | 30 W |
| Switching frequency | 65 kHz |
| Efficiency | 82% |
| Inrush current | 120 A |
| Output current | 5 A |
| Output voltage (USB Type-C) | 5 V |
| Input current | 1.5 A |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Power over Ethernet (PoE) voltage | 48 V |
| Certificates | |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL, National Defense Authorization Act (NDAA) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -30 - 70 ðC |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 ðC |
| Weight & dimensions | |
|---|---|
| Weight | 358 g |
| Height | 146 mm |
| Depth | 42 mm |
| Width | 62 mm |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| Number of products included | 1 pc(s) |
