TP-LINK

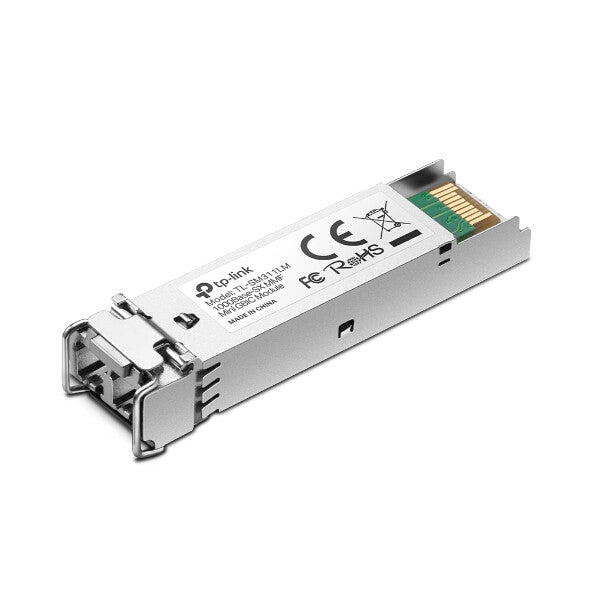

TP-Link SFP 1000BASE-SX LC MiniGBIC Mm

Regular price £23.95 GBP
Sold out
Tax included.
SKU: TL-SM311LM

Out of stock

Pairs well with

TP-Link SFP 1000BASE-SX LC MiniGBIC Mm
£23.95 GBP
£23.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Multi-mode MiniGBIC module
  • Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L

SFP 1000BASE-SX LC MiniGBIC Mm

What This Product Does
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.


Performance
Networking standards IEEE 802.3z
Wavelength 850 nm
Maximum transfer distance 550 m
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
Fiber optic connector LC (UPC)
Multi-mode fiber (MMF) supported Yes
Single-mode fiber (SMF) supported No
Interface type mini-GBIC/SFP
Maximum data transfer rate 1250 Mbit/s
SFP transceiver type Fiber optic
Features
Product colour Metallic
Power
Input voltage 3.3 V
Certificates
Certification FCC, CE
Compliance certificates RoHS
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 80 °C
Operating temperature (T-T) 0 - 70 °C
Maximum operating temperature 70 °C
Minimum operating temperature 0 °C
Weight & dimensions
Height 12.9 mm
Depth 13.7 mm
Width 55.4 mm
Packaging content
Quantity per pack 1 pc(s)
Packaging data
Package weight 110 g
Package height 38 mm
Package depth 207 mm
Package width 38 mm
User guide Yes
Logistics data
Harmonized System (HS) code 85369010
