TP-LINK

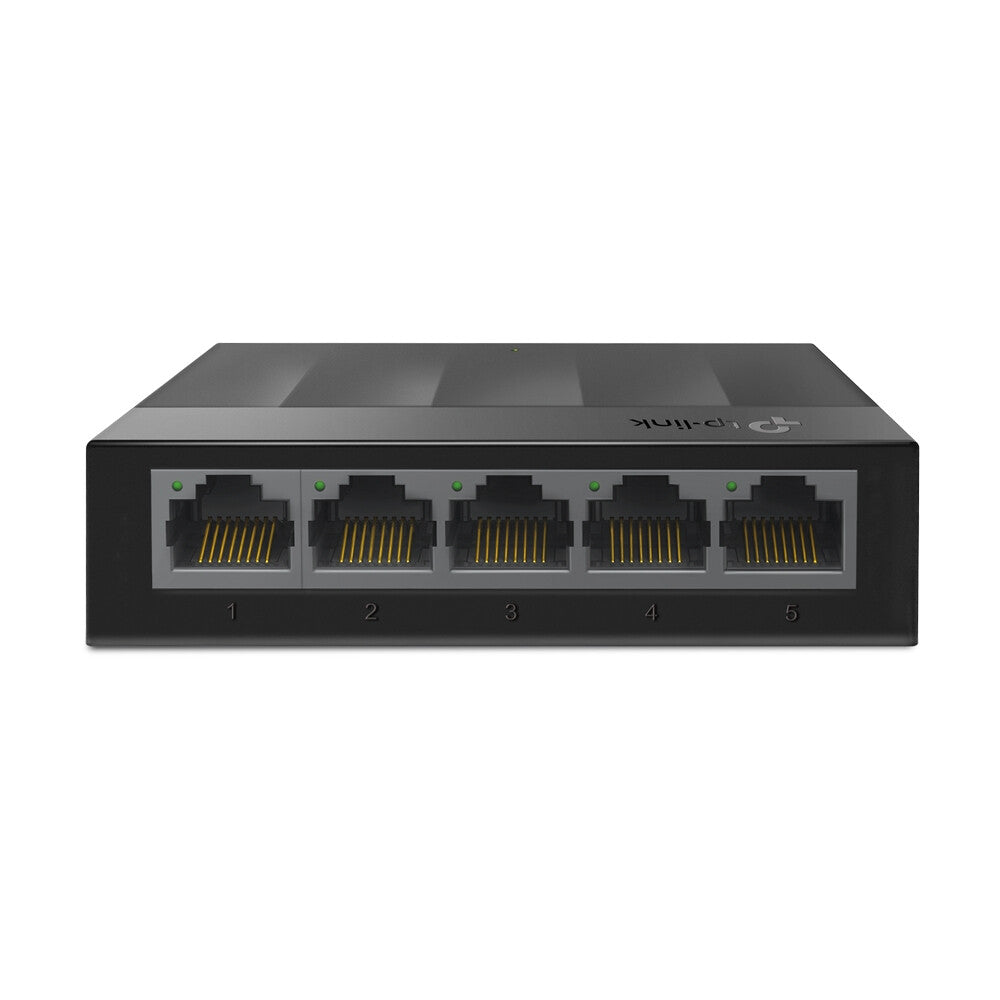

TP-Link LS1005G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Regular price £19.95 GBP
Tax included.
SKU: LS1005G

Stock Adequate!Ready to ship

Pairs well with

TP-Link LS1005G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
£19.95 GBP
£19.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • 5× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power
  • IEEE 802.3X flow control provides reliable data transfer
  • Plastic casing, desktop or wall-mounting design
  • Plug and play, no configuration needed
  • Fanless design ensures quiet operation

LS1005G, IEEE 802.3i/802.3u/ 802.3ab/802.3x, 5x 1G RJ-45, 10 Gbps, 7.4 Mpps, 90x72x23 mm

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.


Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 2000 entries
Switching capacity 10 Gbit/s
Forwarding rate 7.4 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 16000
Packet buffer memory 1.5 MB
Design
Rack mounting No
Product colour Black
Housing material Plastic
LED indicators Yes
International Protection (IP) code IP20, IP40
Wall mountable Yes
Power
Power supply included Yes
DC input voltage 5 V
Input current 0.6 A
Power consumption (max) 3.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 12.617 BTU/h
Weight & dimensions
Width 90 mm
Depth 72 mm
Height 23 mm
Packaging content
Quick start guide Yes
Packaging data
Package type Box
Certificates
Certification CE, FCC, RoHS
Logistics data
Harmonized System (HS) code 85176990
