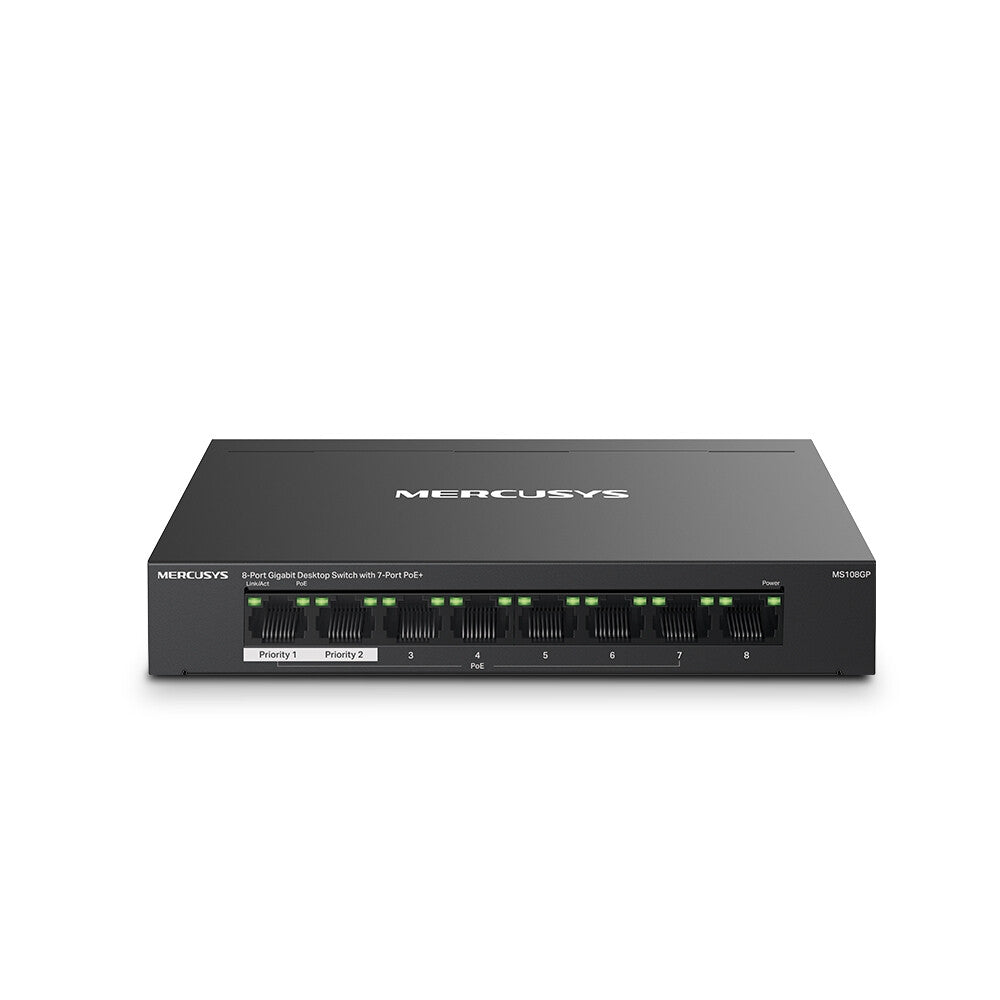

Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+

• Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports
• Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing: Allows for efficient heat dissipation and long network life
• Plug and Play: Simple to use and saves time and effort

---

8× 10/100/1000 Mbps RJ45, 802.3 af/at, 53.5V/1.31A, PoE+, 171 x 98 x 27 mm

---

7 PoE+ Ports (65 W Budget) for Network Deployment
All eight ports of the MS108GP are gigabit ports, with seven PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

No Fuss
No need for electricians; simplify installation and deployment.

Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.

Flexibility
Deployment in complex situations is made possible by more placement possibilities.

Power Management
Improves power usage while intelligently protecting your gadgets from power surges.

IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.

Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS108GP has 7 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Traffic Separation
With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection.

Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.

Plug and Play
MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

Durable and Silent
MS108GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

---

Management features
Switch type	Managed
Web-based management	Yes
Traffic classification	Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	No
Policy-based routing	Yes
Half duplex	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Flow control support	Yes

Data transmission
MAC address table	8000 entries
Store-and-forward	Yes

Design
Rack mounting	No
Stackable	No
Product colour	Black
Housing material	Metal
Wall mountable	Yes

Power
Power source	AC
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Input current	1.31 A
Input voltage	53.5 V
Power consumption (typical)	5.07 W
Power consumption (max)	77.33 W

Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	7
Power over Ethernet plus (PoE+) ports quantity	1
Power over Ethernet (PoE) power per port	65 W

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	262.922 BTU/h

Weight & dimensions
Width	171 mm
Depth	98 mm
Height	27 mm

Packaging content
Cables included	AC
Quick start guide	Yes

---
