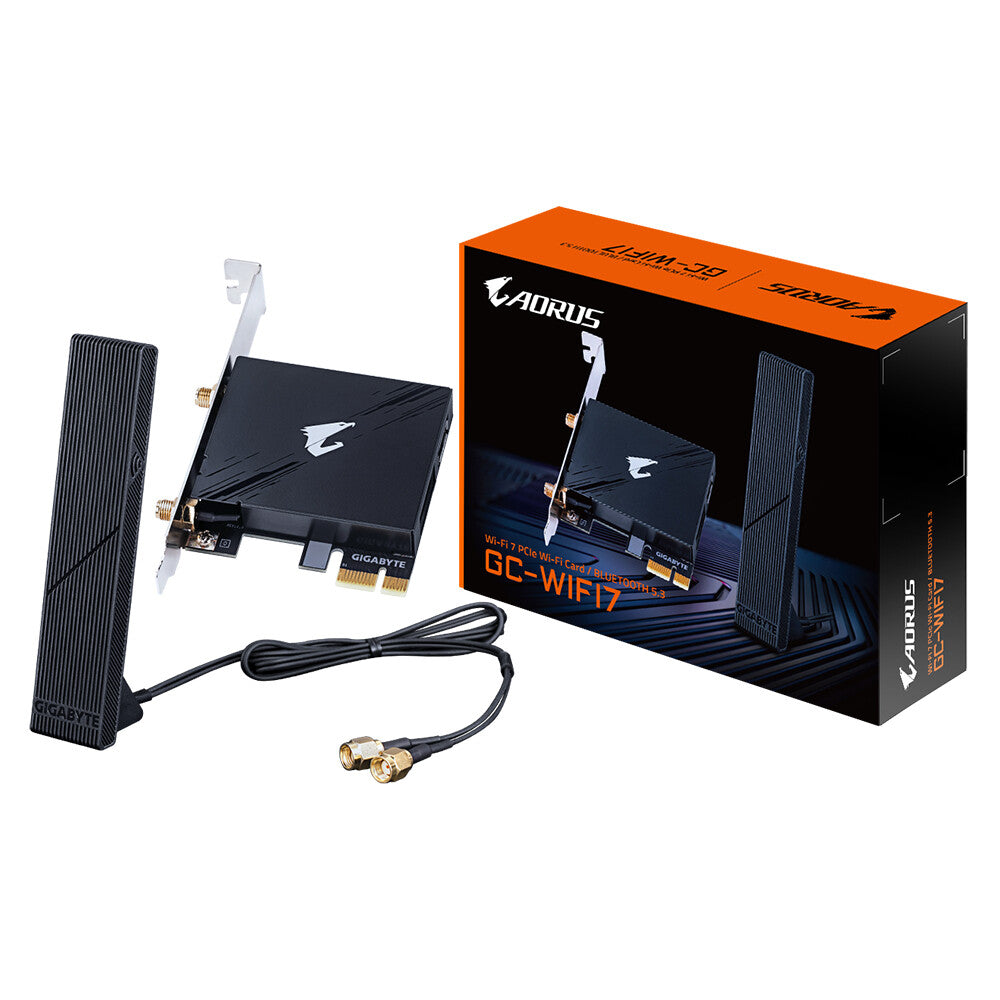

GIGABYTE GC-WIFI7 network card Internal WLAN / Bluetooth 5800 Mbit/s

• Built-in Wi-Fi 7 module
• Supports high-speed wireless connections of up to 5800Mbps
• Offers up to 320MHz bandwidth support across the 2.4GHz, 5GHz, and 6GHz bands
• MLO (Multi-Link Operation) enables simultaneous connections on two bands
• MRU (Multiple RU) enhances interference mitigation and OFDMA efficiency
• 4K-QAM allows for higher transmission rates, resulting in increased efficiency
• Bluetooth 5.3 Compatible
• Supports MU-MIMO TX/RX
• Complies with IEEE 802.11 a/b/g/n/ac/ax/be standards
• Equipped with an ultra-high gain 2Tx2R antenna, supporting both directional and omnidirectional signals
• PCIe x1 Interface Card

---

Wi-Fi 7, 5800 Mbps, MU-MIMO, 2.4GHz, 5GHz, 6GHz, Bluetooth 5.3

---

Wi-Fi 7 brings you the Ultimate VR experience

Wi-Fi 7 provides significant benefits to the realm of virtual reality (VR). With its high bandwidth and low latency capabilities, Wi-Fi 7 ensures a smooth and immersive VR experience.

320/160 MHz channels
Wi-Fi 7 supports up to 320 MHz channels, providing a significant increase in bandwidth for faster data rates.

4K-QAM
With 4K-QAM technology, Wi-Fi 7 improves data throughput, resulting in faster file transfers and seamless streaming.

Multi-link Operation
With MLO(Multi-Link Operation) technology, you can allocate the 2.4GHz band for streaming and the 5/6GHz band for gaming, resulting in a higher quality network experience with fewer interruptions.

Deterministic low latency
Deterministic low latency ensures minimal delays, making it ideal for real-time applications like video conferencing and online gaming.

GIGABYTE Ultra-high Gain Antenna
Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission.

---

Ports & interfaces
Interface	WLAN / Bluetooth
Host interface	PCI Express
Connectivity technology	Wireless

Network
Bluetooth version	5.3
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Frequency range	2.4 - 6 GHz
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi	Yes
Networking standards	IEEE 802.11be, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	5800 Mbit/s

Design
Antenna type	2x2
Antenna	Yes
Product colour	Black
Component for	PC
Internal	Yes

Packaging content
Quick installation guide	Yes
