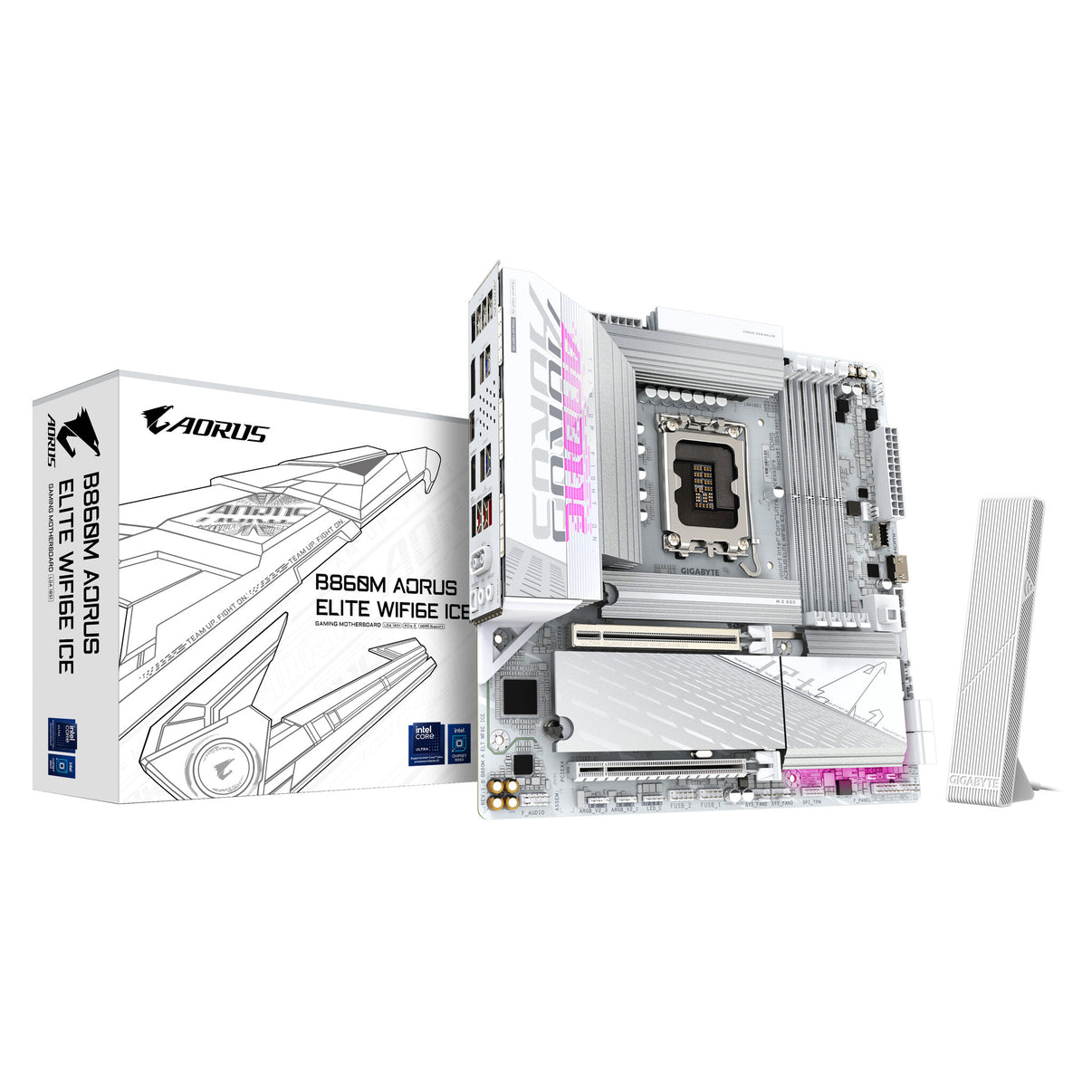

GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4

£189.95 GBP
Tax included.
SKU: B860M AORUS ELITE WIFI6E ICE

Stock Adequate！Ready to ship

Pairs well with

GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
£189.95 GBP
£189.95 GBP

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Twin Hybrid Digital 12+1+2+1 Phases 60A DrMOS VRM
  • Dual Channel DDR5：4*DIMMs
  • PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
  • EZ-Latch Plus for M.2 SSDs installation
  • Fully Covered MOSFET Heatsinks/M.2 Thermal Guard(Ext.) with EZ-Latch Click
  • Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
  • 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C
  • Q-Flash Plus
B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Compatible processor series Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets LGA 1851
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 5600,6400,9200 MHz
Supported memory clock speed (max) 9200 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 7
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12.0
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 2
Number of chassis fan connectors 4
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 2
Number of water pump connectors 2
TPM connector Yes
RGB LED pin header Yes
Number of RGB LED pin headers 4
Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB4 Gen 2x2 ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 2.1
Line-in Yes
Headphone outputs 1
S/PDIF out port Yes
Digital audio optical out 1
WiFi-AP antenna jack 2
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
LAN controller Realtek RTL8125
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model Intel Wi-Fi 6E AX211
Bluetooth Yes
Bluetooth version 5.3
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel B860
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Product colour White
PC health monitoring Fan, Temperature, Voltage, Water cooling
Cooling type Passive
Power source type ATX
Windows operating systems supported Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 3
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 2580
2nd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 25110
3rd M.2 highest PCI Express generation 4.0
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5.0
Clear CMOS jumper Yes
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Battery
Lithium weight per battery 0.07 g
Battery weight 3 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Packaging data
Package width 270 mm
Package depth 268 mm
Package height 68 mm
Package weight 1.9 kg
Logistics data
Products per shipping (inner) case 1 pc(s)
Country of origin China
Weight & dimensions
Width 244 mm
Depth 244 mm
Height 35 mm
Packaging content
Batteries included Yes
Antenna included Yes
Screws included Yes
Bundled software Norton Internet Security (OEM version)
LAN bandwidth management software
Technical details
Warranty period 3 year(s)
Other features
Weight 1.7 kg
