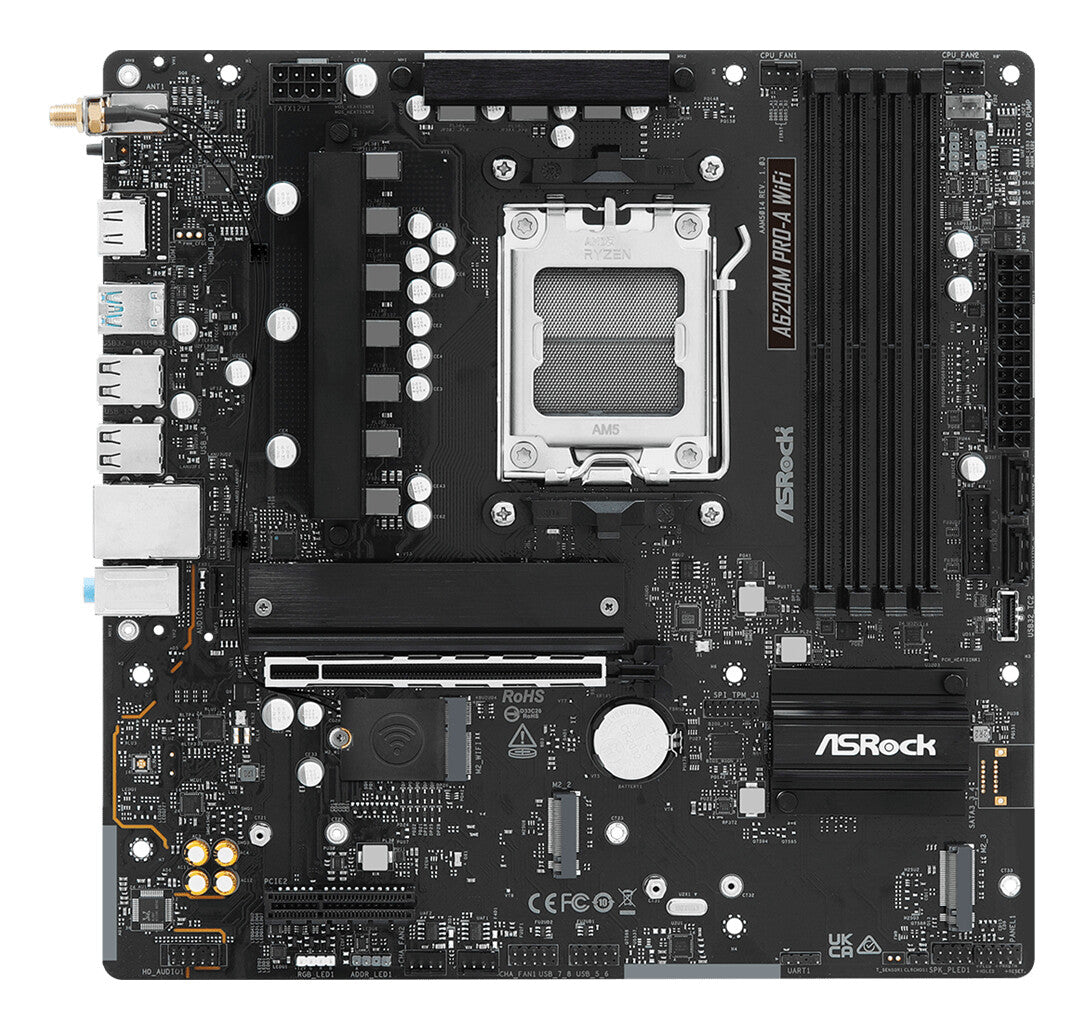

Asrock A620AM PRO-A WIFI AMD A620 Socket AM5 micro ATX

• AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
• PC micro ATX AMD A620 Realtek ALC897 7.1 channels
• DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
• HDD & SSD M.2, NVMe, SATA III RAID support
• AMD AMD RDNA 2
• BIOS type: UEFI AMI 256 Mbit
• 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2

---

Micro ATX, AMD A620A, 4 x DDR5 DIMM, 256GB, 2.5G LAN, AM5 Ryzen 9,8,7000 series, 256Mb AMI UEFI, XMP/EXPO, Wi-Fi 6E, Bluetooth 5.2

---

A620AM Pro-A WiFi

Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Dr. MOS

Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.

Hi-Density Power Connector

CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installer
step2 : Update drivers needed
step3 : Done!

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Post Status Checker

Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

---

Processor
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Processor manufacturer	AMD

Memory
Unbuffered memory	Yes
Maximum internal memory	256 GB
Supported memory clock speeds	8000 MHz
ECC сompatibility	ECC & Non-ECC
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM

Storage controllers
RAID levels	0, 1, 10
RAID support	Yes
Number of HDDs supported	2
Supported storage drive interfaces	M.2, NVMe, SATA III
Supported storage drive types	HDD & SSD

Graphics
High Dynamic Range (HDR) supported	Yes
HDCP version	2.3
HDCP	Yes
Maximum resolution	3840 x 2160 pixels
Graphics card	AMD RDNA 2
Graphics card family	AMD
On-board graphics card	Yes
Parallel processing technology support	Not supported

Internal I/O
Number of RGB LED pin headers	1
RGB LED pin header	Yes
TPM connector	Yes
12V power connector	Yes
Number of water pump connectors	1
Number of chassis fan connectors	3
Number of CPU fan connectors	2
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel audio connector	Yes
Audio connector	Yes
Number of SATA III connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 connectors	2

Rear panel I/O ports
Microphone in	Yes
Rear speaker out	Yes
Line-in	Yes
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	4

Network
Bluetooth version	5.2
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
LAN controller	Dragon RTL8125BG
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN	Yes

Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Cooling type	Passive
Product colour	Black
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Motherboard chipset	AMD A620
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Component for	PC

Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 (Gen 4.x) slots	1

BIOS
BIOS flashback button	Yes
BIOS memory size	256 Mbit
BIOS type	UEFI AMI

Processor special features
Intel Extreme Memory Profile (XMP)	Yes
AMD Extended Profiles for Overclocking (EXPO)	Yes

Weight & dimensions
Depth	244 mm
Width	244 mm

Packaging content
Cables included	SATA
M.2 standoff included	Yes
Screws included	Yes
Antenna included	Yes

Other features
PCI Express x4 (Gen 3.x) slots	1

Technical details
Compliance certificates	CE, Federal Communications Commission (FCC)
