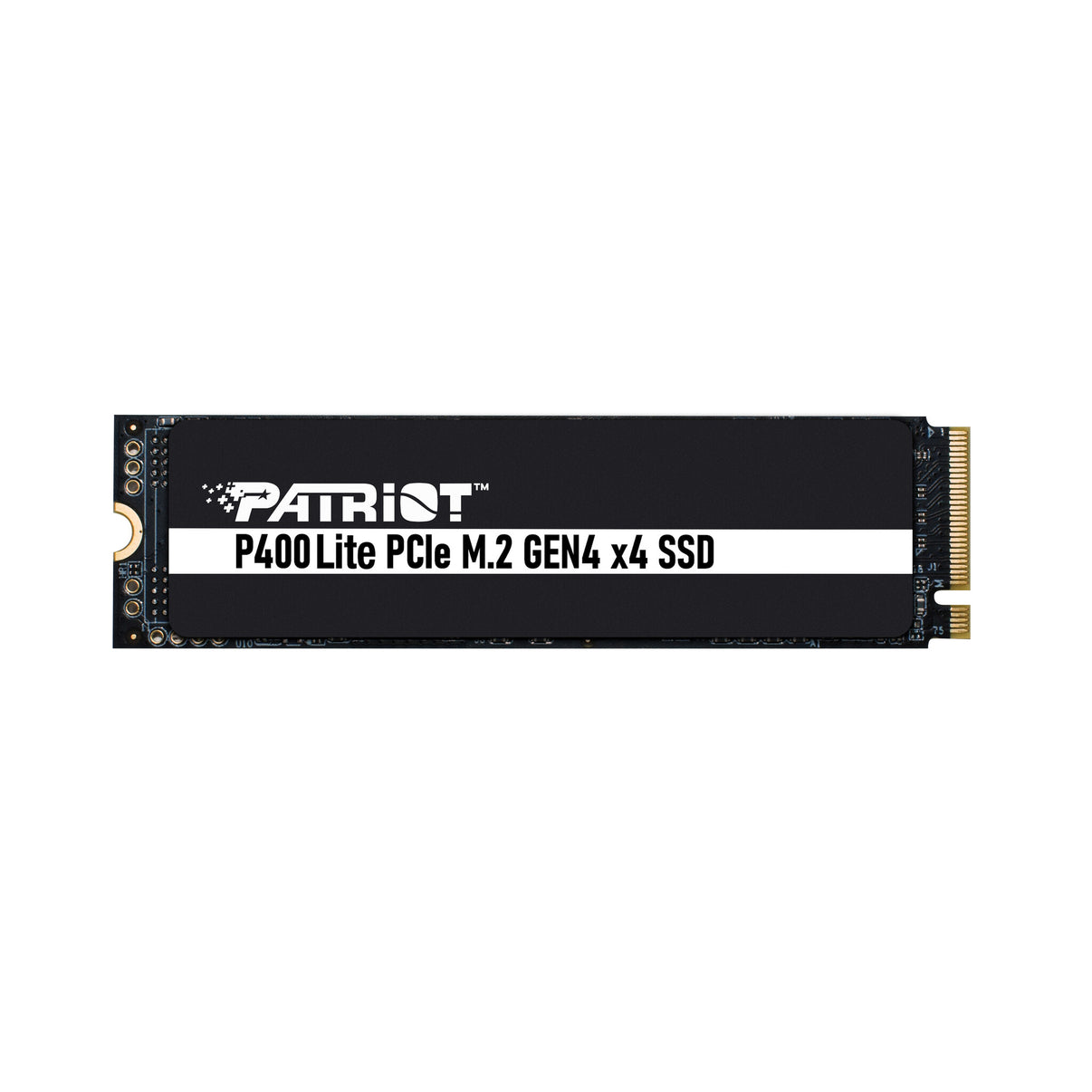

Patriot Memory P400 Lite 1 TB M.2 PCI Express 4.0 NVMe

• Built with the latest PCIe 4X4 controller
• 2280 M.2 PCIe Gen4 x 4, NVMe 1.4
• Sequential Read (Max*): Up to 3,500MB/s
• Sequential Write (Max*): Up to 2,700MB/s
• Capacity: 250GB~2000GB
• Thermal Throttling Technology
• End-to-End Datapath Protection
• Operating Temperature: 0 ~ 70°C
• High efficiency slim Graphene heatshield
• SmartECC technology

---

1TB, M.2 PCIe 4.0 x 4, NVMe 1.4, Read: up to 3500 MB/s, Write: up to 2700 MB/s, SmartECC

---

The P400 Lite is the latest in Patriot’s high-speed Gen 4 x4 PCIe M.2 storage solutions. Featuring low power consumption, multi-application uses and highly compatible M.2 2280 specification for easy installation, the P400 Lite offers excellent reliability for all users. With large storage capacities, faster data access, quick transfer speeds and an improved graphene heatshield for temperature dissipation, the P400 Lite offers sharp performance with zero compromise for quality.

---

Features
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
End-to-End Data Protection	Yes
ECC	Yes
S.M.A.R.T. support	Yes
PCI Express interface data lanes	x4
Sequential write speed (CDM)	2700 MB/s
Sequential read speed (CDM)	3500 MB/s
Sequential write speed (ATTO)	2700 MB/s
Sequential read speed (ATTO)	3500 MB/s
Random write (4KB)	540000 IOPS
Random read (4KB)	340000 IOPS
M.2 SSD size	2280 (22 x 80 mm)
Component for	PC/Laptop
NVMe version	1.4
NVMe	Yes
Interface	PCI Express 4.0
SSD form factor	M.2
SSD capacity	1 TB

Power
Power consumption (idle)	0.38 W
Power consumption (average)	2.38 W

Weight & dimensions
Weight	9 g
Height	3.8 mm
Depth	80 mm
Width	220 mm

Packaging data
Package weight	20 g
Package height	99.6 mm
Package depth	6.6 mm
Package width	130.8 mm

Operational conditions
Operating temperature (T-T)	0 - 70 °C

Sustainability
Sustainability compliance	Yes

Other features
Warranty period	5 year(s)
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA

---
