Akasa SOHO H7 Processor Air cooler 12 cm Black 1 pc(s)
Out of stock
Pairs well with
- Dual heatsink and vibrant aRGB fan operation
- 7 copper heatpipes and base for efficient heat dissipation
- Secure and easy mounting
- Designed for the latest Intelî LGA1700 & AMD AM5
- Supporting CPU's with thermal design of up to 250W TDP
120 x 120 x 25 mm, 500 - 2000 RPM, DC 12V, 0.13A, 136.8 x 120 x 158 mm, 1192.8g, Black

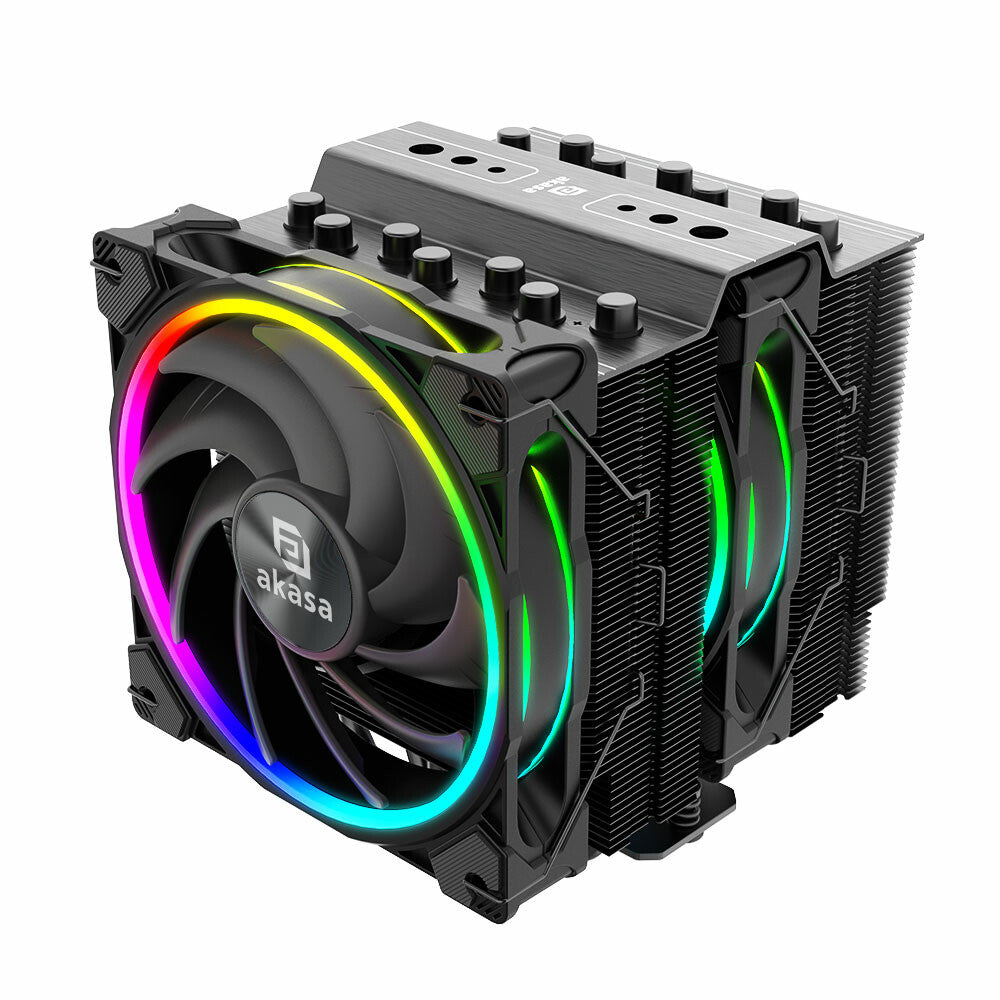

Premium Dual Tower 7-Heatpipe CPU Cooler with Addressable RGB
Ultra hi-performance premium CPU cooler fitted with dual full aRGB, intelligent PWM speed control 120mm fan and 7 copper pipes. Designed for CPUs with a maximum TDP of 250W.
Dual Heatsink and Fan Operation
Doubled surface area allows for superior thermal dissipation, resulting in optimal cooling of the CPU, aided by the additional airflow from the second fan.
Crucial Design for Hi-End Cooling Efficiency
The 7 high performing copper heatpipes and base with Direct Touch Technology (DTT) for hi-efficient heat conductance and transfer. Ensuring cooling efficiency is at the forefront of the CPU cooling design and the cooler is able to support CPU's up to 250W TDP.
Designed for the Latest Sockets
Increased contact surface area to support the latest Intelî LGA1700 and AMD AM5 sockets, and corresponding processors which are larger in size or density.
Elevated Aesthetics
Experience a variety of visual possibilities with over 16.8 million colour combinations for total customisable pulsating aRGB lighting. Unique premium aluminium top cover design helps give a distinct look to your desktop.
Maximum Reliability in Cooling Performance
Intelligent PWM synced speed control ensures that the fan cools your system efficiently, staying quiet under lower loads and performing effectively otherwise. Superior rotor design with hydro dynamic bearing for improved lubrication, reducing fan noise and extending fan life up to 40,000 hours.
Sleek Black Fins
High density design for maximum thermal distribution to ensure CPU has superb cooling. Electro-painted in black for corrosion resistance and sleek aesthetics
Easy Installation and Wide Compatibility
Mounting kit offers easy and secure installation for a wide range of Intelî and AMD motherboards.
Memory Compatibility
Speacially designed heatsinks with cutouts, for maximum RAM compatibility including mini-ITX motherboards.
Motherboard Sync
Motherboard sync certified by popular RGB software including Asusî, ASRockî, Gigabyteâ⢠RGB Fusion, MSIî and Razer Chromaââ¢.
Included Ultra-Performance Thermal Paste
T5 Pro-Grade Plus thermal paste is included with hybrid silicone and nano-diamond particles for ultra-performance. Outperforming other top selling ultra-performance competitor thermal pastes.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 40000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Ceramic bearing |
| Fan 2 maximum air pressure | 1.75 mmH2O |
| Fan 2 maximum airflow | 52.91 cfm |
| Fan 2 noise level (high speed) | 31.8 dB |
| Fan 2 noise level (low speed) | 14.2 dB |
| Fan 2 rotational speed (max) | 2000 RPM |
| Fan 2 rotational speed (min) | 500 RPM |
| Fan diameter 2 | 12 cm |
| Maximum air pressure | 1.75 mmH2O |
| Maximum airflow | 52.91 cfm |
| Noise level (high speed) | 31.8 dB |
| Noise level (low speed) | 14.2 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 500 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Fan diameter | 12 cm |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Illumination LED | Yes |
| Number of heat pipes | 7 |
| Number of fan blades | 9 |
| Radiator material | Aluminum |
| Material | Aluminium, Copper, Plastic |
| Product colour | Black |
| Power | |
|---|---|
| LED voltage | 0.5 V |
| Rated current | 0.13 A |
| Thermal Design Power (TDP) | 250 W |
| Rated voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan thickness | 2.5 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.19 kg |
| Radiator height | 15.8 cm |
| Radiator depth | 12 cm |
| Radiator width | 13.7 cm |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Packaging content | |
|---|---|
| Installation instruction | Yes |
| CPU bracket(s) | Yes |
| Screws included | Yes |
| Mounting kit | Yes |
